Manometer Siab Gauge
Manometer siab gauge
Rau corrosive los yog tsis corrosive gas thiab kua aggressive Media uas tsis muaj kuab heev thiab yuav crystallize.
Tshwj xeeb yog siv nyob rau hauv tshuaj lom neeg, petrochemical thiab zaub mov kev lag luam, biochemistry thiab tej kev lag luam maj. Rau Kev Ntsuas cov ntsiab lus raug vibrations thiab siab dynamic Pressure load.
Hauj lwm lawm
Manometer siab gauge
Packing Delivery:
Ntim: ib lub thawv rau ib lub thawv.
Ntim hom: Polyster hnab ntxiv rau lub thawv ntawv, thawv, pallet.
Carton loj: 30x30x32cm
Thawv hnyav: 20-25kg
Lub sij hawm xa tuaj: 10-28 hnub
Chaw nres nkoj: Ningbo lossis Shanghai
Warranty: 1 xyoo
Kev Them Nyiaj: T / T, 50/50
Product details:
Tsim | TS EN 837-1 Kev ntsuas siab Manometer |
Chav kawm raug | NS 50, 63: 1.6 NS 100: 1.0 |
Scale Ranges | NS 50: 0 ... 1 to 0 ... 400 bar NS 63, 100: 0 ... 0.6 to 0 ... 1,000 bar los yog tag nrho lwm qhov sib npaug ntawm lub tshuab nqus tsev lossis sib xyaw ua ke siab thiab lub tshuab nqus tsev |
Kev txwv siab | NS 50, 63: Steady: 3/4 x tag nrho cov nqi Fluctuating: 2/3 x tag nrho tus nqi Lub sij hawm luv luv: Tus nqi tag nrho NS 100: Steady: Tus nqi tag nrho Fluctuating: 0.9 x tus nqi tag nrho Lub sij hawm luv luv: 1.3 x tus nqi tag nrho |
Hu rau | NS 50, 63: Yas ABS, dawb, nrog tus pointer nres tus pin NS 100: Aluminium, dawb, dub ntawv |
Daim ntawv pov thawj | • 2.2 test report per EN 10204 (e.g. state-of-the-art manufacturing, material proof, indication accuracy) • 3.1 inspection certificate per EN 10204 (e.g. indication accuracy) |
Hais txog peb:
Ntau yam khoom siv:
Kev xaiv:
>>Safety glass window for dial size: 2.5"3"
>>Blow-out disk by back for dial size: 4"
>>Adjustable pointer available for dial size: 4"6"
>>Tshwj xeeb txiv neej los yog poj niam xov txuas
>>Ntsuas nruab nrab Tmax. ntxiv 100C
>>Glycerine los yog Silicone filling
>>Kev huv huv rau kev pabcuam oxygen
>>Red pointer qhia max. Siab ntawm dial
Daim ntawv pov thawj:

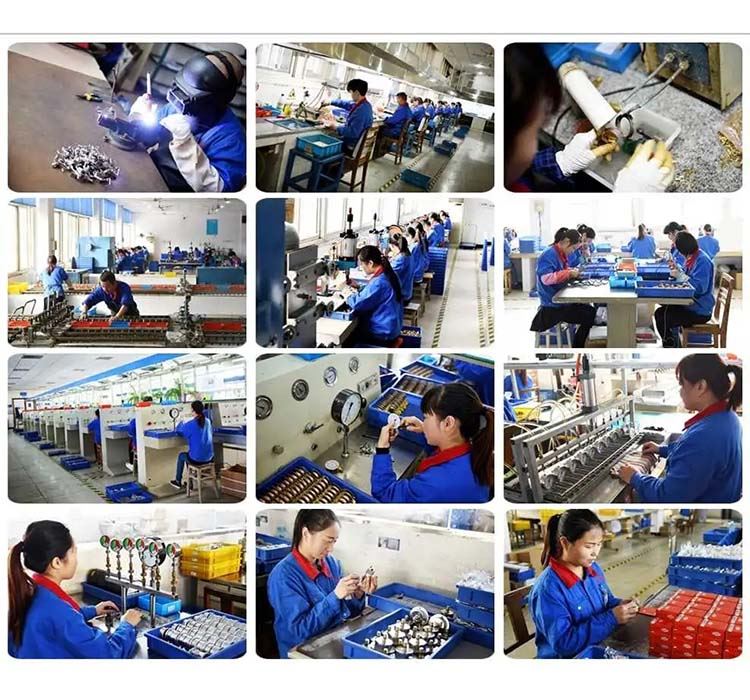

Kev tsim khoom thiab tshuaj xyuas:
Kev sib txuas lus:
Packing thiab shipping:
Daim ntawv thov:
Rau corrosive los yog tsis corrosive gas thiab kua aggressive Media uas tsis muaj kuab heev thiab yuav crystallize.
Tshwj xeeb yog siv nyob rau hauv tshuaj lom neeg, petrochemical thiab zaub mov kev lag luam, biochemistry thiab tej kev lag luam maj. Rau Kev Ntsuas cov ntsiab lus raug vibrations thiab siab dynamic Pressure load.
Specification:
1. Case nplhaib: Stainless hlau 304
2. Window: Acrylic(dial size: 1-1/2"3") Safety glass(dial size: 4"6")
3. Element Movement: Stainless hlau
4. Bourdon raj system: Stainless hlau 316
5. Qhov (socket): Stainless hlau
6. Pointer: Aluminium alloy, xim dub
7. Connection: 1/8", 1/4", 3/8", 1/2", 3/4"(BSP(PF)/BSPT(PT)/NPT)
8. Hom kev sib txuas:
Ib hom (khawm txuas),
B hom (khawm txuas nrog rov qab flange rau phab ntsa
Mounting)
AD hom (rov qab txuas yam tsis muaj flange)
BD hom (rov qab txuas nrog pem hauv ntej flange)
UD hom (rov qab txuas nrog clamp (w / o flange) rau vaj huam sib luag
Mounting)
9. Dial size: 1.5", 2", 2.5", 3", 4", 6"
10. Ambient Kub: -2060C
11. Ntsuas nruab nrab kub: Tmax. ntxiv 100C
12. Accuracy: ( plus /-)1.6 percent full scale(dial size: 1.5"2.5")
( plus /{{0}})1.0 percent full scale(dial size: 3"6")
13. Siab ntau: Ua raws li koj qhov kev txiav txim
14. Hom: Txheem ntsuas siab; Vacuum pressure gauge Compound pressure gauge
