RS485 Dej Electromagnetic Flow Meter
Medium: Conductive Liquid
Fais fab mov: 220VAC / 24VDC
Kev sib txuas lus: RS485 / Modbus / HART
Hauj lwm lawm
RS485 dej Electromagnetic Flow Meter
Khoom Description
-
Dej magnetic flow meter yog cov cuab yeej tseem ceeb hauv ntau qhov kev lag luam uas yuav tsum tau ntsuas qhov tseeb thiab txhim khu kev qha ntawm cov dej ntws. Cov ntsuas no siv cov hlau nplaum sib nqus los ntsuas qhov nrawm ntawm cov kua dej uas dhau los ntawm cov yeeb nkab, muab qhov tsis muaj - cuam tshuam thiab siv tau zoo rau cov khoom siv ntsuas cov pa ntsuas.
Ib qho ntawm qhov zoo tshaj plaws ntawm cov dej sib nqus dej ntws ntsuas yog lawv lub peev xwm los ntsuas qhov ntws ntawm ntau yam kua, suav nrog cov kua dej corrosive thiab slurries, uas ua rau muaj kev sib tw tseem ceeb rau cov khoom siv ntsuas ntsuas. Tsis tas li ntawd, qhov tsis yog -kev cuam tshuam ntawm cov ntsuas no ua kom ntseeg tau tias tsis muaj kev cuam tshuam hauv txoj kev ntws, tiv thaiv kev poob siab thiab tswj kev ua haujlwm zoo.
Lwm tus cwj pwm zoo ntawm cov dej sib nqus dej ntws yog lawv qhov tseeb thiab muaj peev xwm los ntsuas cov nqi ntws nrog siab precision.
Qhov no yog vim kev siv cov teeb liab siab tshaj plaws ua cov algorithms uas ua kom muaj kev ntsuas meej txawm tias xav tau kev lag luam ib puag ncig.
Tsis tas li ntawd, cov dej sib nqus dej ntws tau yooj yim rau nruab, khiav lag luam, thiab tswj tau, ua rau kev txuag nqi thiab nce kev ua haujlwm zoo rau kev lag luam uas vam khom cov dej ntws ntsuas. Tsis muaj qhov txav mus los, cov ntsuas no feem ntau siv tau ntev thiab ntev - kav ntev, yuav tsum tau saib xyuas tsawg.
Zuag qhia tag nrho, kev siv dav dav ntawm cov dej sib nqus dej ntws yog qhov ua pov thawj rau lawv qhov tseem ceeb thiab kev ua tau zoo hauv kev ntsuas cov dej ntws hauv ntau qhov kev lag luam. Lawv muab kev txhim khu kev qha, raug, thiab qis -cov kev pabcuam tu rau kev ntsuas cov nqi ntws thaum txo cov nqi thiab txhim kho kev ua haujlwm ntawm tag nrho.

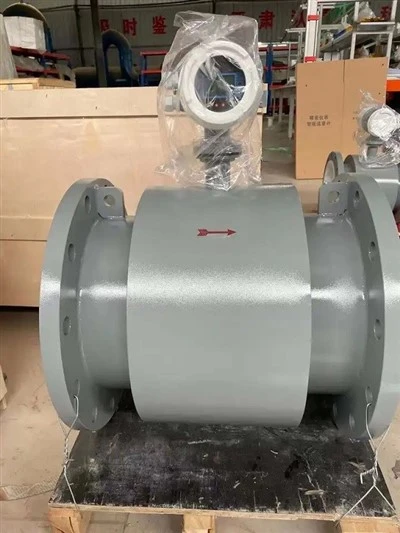

Electromagnetic dej ntws meter
dej ntws meter
Tsis muaj
| Nominal Dia | DN10 ~ DN3000 hli |
| Nominal Siab | 0.6 ~ 4.0MPa (siab dua tuaj yeem hloov kho) |
| Lub zog loj | AC220V 50Hz / DC24V / 3.6V |
| Lus | Lus Askiv, Lwm tus tuaj yeem hloov kho. |
| Zaub | Instantaneous flow, flow unit, cumulative flow |
| Chav tsev | Liter, m³, Gallon (yeem). |
| Qhov tseeb | ±0.5%, ±0.3% |
| Tso zis teeb liab | RS485 / 4-20mA / Pulse / Analog |
| Kev sib txuas lus | RS232, RS485 (MODBUS), HART yog xaiv tau |
| Khoom siv hauv ob sab phlu | Neoprene, Polyurethane Roj Hmab, PTFE, F46, PFA |
| Cov khoom siv hluav taws xob | SUS316, HB, HC, Titanium, Tantalum, Platinum -iridium alloy, Wolfram |
| Nruab nrab Temp. | -20℃~ +180 degree |
| Ambient Temp. | -25℃~ +60 degree |
| Hluav taws xob nruab nrab Kev coj ua |
Ntau dua lossis sib npaug li 5us / cm |
| Kev ntsuas ntau | 1500: 1, ntws tus nqi<15m/s |
| Chav kawm tiv thaiv | IP65, IP67, IP68 (Yeem) |
|
|
Ib lub thawv ntoo
ntoo thawv
polyster sab hauv
flow meter packing
Cov ntsiab lus ntawm no Rota Meter flowmeter
Cov khoom siv raw ntawm lub cev tseem ceeb yog ua los ntawm GB / T699-88 carbon steel, tiv thaiv xeb xim txheej txheem, tshwj xeeb xav tau, xim tuaj yeem kho
Cov khoom siv raw ntawm lub cev plhaub yog ua los ntawm stainless hlau (SUS 316thiabSUS 304yog xaiv tau), thiab daim iav saum npoo yog polished.
Dej, dej phwj tuaj, cov av nkos tsis muaj zog, cov cement, qhov kub thiab txias: -20℃~ +60℃.Nco tseg: lawv yog cov khoom siv hauv ob sab phlu, lwm yam khoom siv (polyurethane roj hmab, F46, PFA) tuaj yeem kho.
Kev tsim khoom thiab tshuaj xyuas
Cov neeg siv khoom sib txuas lus
Product details check
Qauv kuaj
Them nyiaj tshev
Ntau lawm Machinery:
| Lub npe tshuab | Hom & Qauv No. | Ntau | Tus naj npawb xyoo siv | Qhov xwm txheej |
|---|---|---|---|---|
| Kev sib dhos kab | N/A | 10 | 7 | txais tau |
| Vuam Tshuab | N/A | 1 | 7 | txais tau |
| Tshuab pleev xim | N/A | 1 | 7 | txais tau |
| Rolling Tshuab | N/A | 4 | 7 | txais tau |
| Tshuab shearing | N/A | 1 | 7 | txais tau |
| Laser Marking Tshuab | N/A | 1 | 5 | txais tau |
| Phaj dabtsi yog khoov tshuab | N/A | 1 | 6 | txais tau |
| Cov cuab yeej raug regulator | N/A | 2 | 2 | txais tau |
Kev xeem Machinery:
| Lub npe tshuab | Hom & Qauv No. | Ntau | Tus naj npawb xyoo siv | Qhov xwm txheej |
|---|---|---|---|---|
| Flow Test Machine | N/A | 4 | 6 | txais tau |
| Kev laus Tester | N/A | 1 | 6 | txais tau |
| Solenoid Valve Tester | N/A | 1 | 6 | txais tau |
| Flow Calibration Khoom | N/A | 1 | 6 | txais tau |
| Gluing Tshuab | N/A | 1 | 6 | txais tau |
| Siab Tester | N/A | 1 | 6 | txais tau |
| Dej ntsuas dej Tester | N/A | 4 | 6 | txais tau |
| Sealing Tester | N/A | 4 | 4 | txais tau |
| Qhov kub thiab txias qhov cub | N/A | 1 | 2 | txais tau |
kev teeb tsa
Flowmeter installation:
1.Thaum txhim kho lub flowmeter, nws yog nruj me ntsis txwv tsis pub ua hluav taws xob vuam ncaj qha ntawm lub qhov hluav taws xob thiab qhov hluav taws xob flanges kom tsis txhob kub hnyiab qhov chaw ntawm lub flowmeter.
2.Qhov tshiab ntsia los yog overhauled pipeline yuav tsum tau muab ntxuav, thiab lub flowmeter tuaj yeem ntsia tau tom qab tshem cov khib nyiab hauv cov kav dej.
3.Lub flowmeter yuav tsum tau muab tso rau hauv ib qho chaw uas yooj yim rau kev txij nkawm, tsis muaj zog electromagnetic teb cuam tshuam, muaj zog txhua yam kev co thiab thermal tawg.
4.Flow meters yuav tsum tsis txhob siv nyob rau hauv lub sij hawm uas cov ntws yog nquag cuam tshuam thiab muaj ib tug muaj zog pulsating txaus los yog siab pulsation.
Cim npe nrov: rs485 dej electromagnetic flow meter, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, kev cai, lag luam wholesale, pheej yig
